3-Wheel FE3D N series
3-Wheel FE3D N series

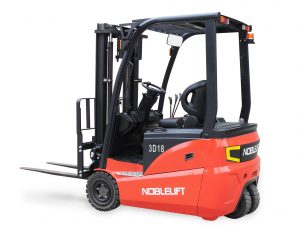

Noblelift’s new N Series, three-wheel electric, counterbalanced forklifts arrive on the market with exceptional performance and productivity – but low cost of operation. Noblelift’s N Series forklifts feature cutting edge engineering concepts to show the commitment to fulfilling the needs of the customer, conserving our environment, and reducing cost of total ownership.
● 48 Volt Electrical TOTAL AC System
● All-Around Dual Front Wheel Drive
● Curtis Intelligent Computer Control System
● With On-Board Curtis Self-Diagnostics (IMS) Display
● Excellent Safety and Reliability
● Easy Service and Maintenance
● Smart Open Side Battery Access Door

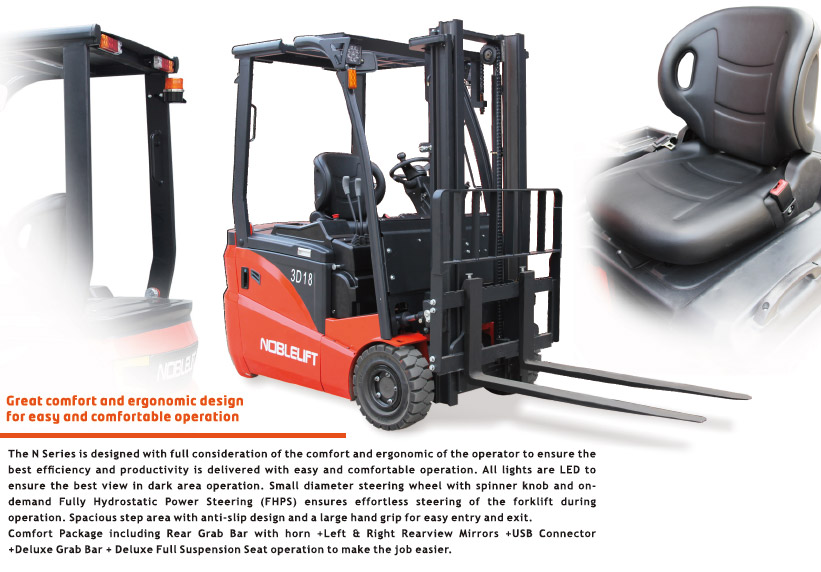

● Great comfort and ergonomic design
Download Brochure: FE3D35-44N Series
Parameters
| Identification | 1.1 | Manufacture(abbreviation) | Noblelift | Noblelift | Noblelift | |
| 1.2 | Manufacturer’s type designation | FE3D35N | FE3D38N | FE3D44N | ||
| 1.3 | Drive:electric(battery or mains),diesel,petrol gas,manual) | electric | electric | electric | ||
| 1.4 | Type of operation(hand,pedestrian,standing,seated,order-picker) | seated | seated | seated | ||
| 1.5 | Load capacity/rated load | Q(lbs) | 3500 | 3800 | 4400 | |
| 1.6 | Load centre distance | C(in) | 19.7 | 19.7 | 19.7 | |
| 1.8 | Load distance,centre of drive axle to fork | x(in) | 14.6 | 14.8 | 14.8 | |
| 1.9 | wheelbase | y(in) | 53.5 | 53.5 | 58.7 | |
| Weights | 2.1 | Service weight incl. battery(see line 6.5) | lbs | 6820 | 7172 | 7524 |
| 2.2 | Axle loading ,laden front/rear | lbs | 945.9/112.6 | 1024.8/114.9 | 1099.1/121.6 | |
| 2.3 | Axle loading,unladen front/rear | lbs | 335.6/362.6 | 362.6/371.6 | 376.1/394.1 | |
| Wheels、Chassis | 3.1 | Type:solid rubber,superelastic,pneumatic,polyurethane | superelastic | superelastic | superelastic | |
| 3.2 | Tyres size,front | 18×7-8 | 18×7-8 | 200/50-10 | ||
| 3.3 | Tyres size,rear | 15X4½-8 | 15X4½-8 | 15X4½-8 | ||
| 3.5 | Wheels,number front/rear(×=driven wheels) | 2×/2 | 2×/2 | 2×/2 | ||
| 3.6 | Track width,front | b10(in) | 37.8 | 37.8 | 38.7 | |
| 3.7 | Track width,rear | b11(in) | 7.1 | 7.1 | 7.1 | |
| Basic Dimemsions | 4.1 | Mast/fork carriage tilt forward/backward | α/β(°) | 5/7 | 5/7 | 5/7 |
| 4.2 | lowered mast height | h1(in) | 79.1 | 79.1 | 79.1 | |
| 4.3 | Free lift | h2(in) | 4.9 | 4.9 | 4.9 | |
| 4.4 | Lift height | h3(in) | 118.1 | 118.1 | 118.1 | |
| 4.5 | Extended mast height | h4(in) | 156.7 | 156.7 | 156.7 | |
| 4.7 | Overhead load guardheight | h6(in) | 81.7 | 81.7 | 81.7 | |
| 4.8 | Seat height/standing height | h7(in) | 40.6 | 40.6 | 40.6 | |
| 4.12 | Coupling height | h10(in) | 18.3 | 18.3 | 18.3 | |
| 4.19 | Overall length | l1(in) | 112 | 118.1 | 123.2 | |
| 4.20 | Length to face of forks | l2(in) | 75.8 | 75.9 | 81.1 | |
| 4.21 | Overall width | b1(in) | 44.7 | 44.7 | 44.7 | |
| 4.22 | Fork dimensions | s/e/l(in) | 1.4/3.9/36.2 | 1.6/4.7/42.1 | 1.6/4.7/42.1 | |
| 4.24 | Fork carriage width | b3(in) | 40.9 | 40.9 | 40.9 | |
| 4.31 | Ground clearance ,laden,under mast | m1(in) | 4.8 | 4.8 | 4.8 | |
| 4.32 | Ground clearance,centre of wheelbase | m2(in) | 4.1 | 4.1 | 4.1 | |
| 4.33 | Aisle width for pallets 1000×1200 crossways | Ast(in) | 122.9 | 123.1 | 128.2 | |
| 4.34 | Aisle width for pallets 800×1200 lengthways | Ast(in) | 130.1 | 131 | 132.2 | |
| 4.35 | Turning radius | Wa(in) | 61 | 61 | 66.1 | |
| Performance Data | 5.1 | Travel speed,laden/unladen | miine/h | 8.7/9.3 | 8.7/9.3 | 8.1/9.3 |
| 5.2 | Lift speed,laden/unladen | fpm | 6.3/8.3 | 6.3/8.3 | 6.3/8.3 | |
| 5.3 | lowering speed,laden/unladen | fpm | ＜11820 | ＜11820 | ＜11820 | |
| 5.5 | Drawbar pull,laden/unladen S2 60 min | blf | 2925 | 3150 | 3600 | |
| 5.7 | Max.Gradient performance,laden/unladen S2 5 min | % | 15/20 | 15/20 | 13/18 | |
| 5.10 | Service brake | hydraulic | hydraulic | hydraulic | ||
| E-Motor | 6.1 | Drive motor rating S2 60 min | hp | 6.03*2 | 6.03*2 | 6.03*2 |
| 6.2 | Lift motor rating at S3 15% | hp | 11.5 | 11.5 | 11.5 | |
| 6.3 | Battery standard | BS | BS | BS | ||
| 6.4 | Battery voltage,nominal capacity K5 | V/Ah | 48/455 （48/490 48/560) | 48/455 （48/490 48/560) | 48/560 (48/630) | |
| 6.5 | Battery weight | lbs | 1760 | 1760 | 2090 | |
| Battery dimensions l/w/h | in | 38.6/21.2/26.4 | 38.6/21.2/26.4 | 38.6/26.3/26.4 | ||
| Other Details | 8.1 | Type of drive control | AC | AC | AC | |
| 8.2 | Operating pressure for attachments | psl | 2537.5 | 2537.5 | 2537.5 | |
| 8.3 | Oil volume for attachments | gmp | 570.6 | 570.6 | 570.6 | |
| 8.4 | Sound level at driver’s ear according to EN 12 053 | dB(A) | 73 | 73 | 73 |
