Economic Stacker – ECL22M
Economic Stacker – ECL22M

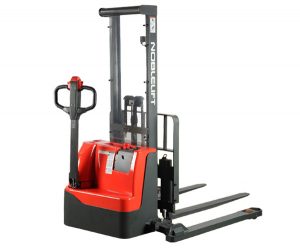

An economic and efficient solution for light-duty stacking applications.
- American Curtis Travel Controller
- Integral 24 volt DC drive motor
- 2 x 12V/85Ah maintenance-free batteries
- Built-in 24V/10A 110V charger standard
- Battery indicator
- Operator protection – Plexiglass
- Adjustable base legs
- I.D. 39.7” to 54.3”, O.D. 49.2” to 63.8”
- Fork size: 45.3”Lx 11~31.5”W
- 8.7″ x 2.8″ polyurethane drive tire
- 3.1″ x 3.7″polyurethane load wheels
- Emergency power disconnect
- Ergonomic control handle with horn button and belly button
- Dual butterfly-style thumb controls with Curtis throttle
- Key switch limits access to approved personnel
- Travels peed: 2.8mph (unloaded), 2.7mph (fully loaded) Optional 2 x 12V/106Ah maintenance-free batteries
- Optional fork-over type available
- Optional: 1.4/ 3.9/ 37.4
- Optional: 2x12V / 106
Parameters
| Technical data sheet for industrial trucks acc. to VDI 2198 | ||||
|---|---|---|---|---|
| Distinguishing mark | 1.2 | Manufacturer`s type designation | ECL22M | |
| 1.3 | Drive | Battery | ||
| 1.4 | Operator type | Pedestrian | ||
| 1.5 | Load Capacity / rated load | Q(lbs) | 2200 | |
| 1.6 | Load centre distance | c(in) | 23.6 | |
| 1.8 | Load distance ,centre of drive axle to fork | x(in) | 28.9 | |
| 1.9 | Wheelbase | Y(in) | 50.4 | |
| Weight | 2.1 | Service weight | lbs | 1663 |
| 2.2 | Axle loading, laden front/rear | lbs | 1729/2134 | |
| 2.3 | Axle loading, unladen front/rear | lbs | 1166/497 | |
| Tyres, Chassis | 3.1 | Tires | Polyurethane (PU) | |
| 3.2 | Tire size, front | φxW (in) | φ8.7 × 2.8 | |
| 3.3 | Tire size, rear | φxW (in) | φ3.1 × 3.7 | |
| 3.4 | Additional wheels (dimensions) | φxW (in) | φ4.9 × 2.4 | |
| 3.5 | Wheels, number front/rear (x=driven wheels) | 1x+1 / 2 | ||
| 3.6 | Tread, front | b10 (in) | 20.8 | |
| 3.7 | Tread, rear | b11 (in) | 44.5 – 59 | |
| Dimensions | 4.2 | Lowered mast height | h1 (in) | 76.2 |
| 4.3 | Free Lift height | h2 (in) | 2.8 | |
| 4.4 | Lift | h3 (in) | 111.8 | |
| 4.5 | Extended mast height | h4(in) | 134.6 | |
| 4.9 | Height of tiller in drive position min./ max. | h14 (in) | 30.9/ 51.2 | |
| 4.15 | Height, lowered | h13(in) | 1.6 | |
| 4.19 | Overall length | l1 (in) | 72.4 | |
| 4.20 | Length to face of forks | l2 (in) | 27.6 | |
| 4.21 | Overall width | b1 (in) | 49.2 | |
| 4.22 | Fork dimensions | s/e/l(in) | 1.4/3.9/45.3 1) | |
| 4.25 | Distance between fork- arms | b5(in) | 11.1 – 31.5 | |
| 4.32 | Ground clearance, centre of wheelbase | m2(in) | 1 | |
| 4.33 | Aisle width for pallets 1000X1200 crossways | Ast (in) | 92 | |
| 4.34 | Aisle width for pallets 800X1200 lengthways | Ast(in)) | 90.6 | |
| 4.35 | Turning radius | Wa(in) | 58.5 | |
| Performance data | 5.1 | Travel speed, laden/ unladen | mph | 2.7/ 2.8 |
| 5.2 | Lift speed, laden/ unladen | fpm | 21.7/ 31.5 | |
| 5.3 | Lowering speed, laden/ unladen | fpm | 25.6/ 21.7 | |
| 5.8 | Max. gradeability, laden/ unladen | % | 5 / 10 | |
| 5.10 | Service brake | Electromagnetic | ||
| Electric motor | 6.1 | Drive motor rating S2 60min | HP | 0.6 |
| 6.2 | Lift motor rating at S3 7.5% | HP | 3.0 | |
| 6.3 | Battery acc. to DIN 43531/ 35/ 36 A, B, C, no | no | ||
| 6.4 | Battery voltage, nominal capacity K5 | V/Ah | 2X 12/852) | |
| 6.5 | Battery weight | lbs | 2X 55 | |
| 6.6 | Energy consumption acc. to VDI cycle | kWh/h | 0.76 | |
| Additional data | 8.1 | Type of drive control | DC- Speed Control | |
| 8.4 | sound level at driver`s ear acc. to EN 12053 | dB(A) | < 70 | |
