PS35/44L SL
PS35/44L SL
The best choice for your warehouse or storage operation. Professional and heavy-duty electric stacker features excellent performance.
Standard Features
- Italian ZAPIController

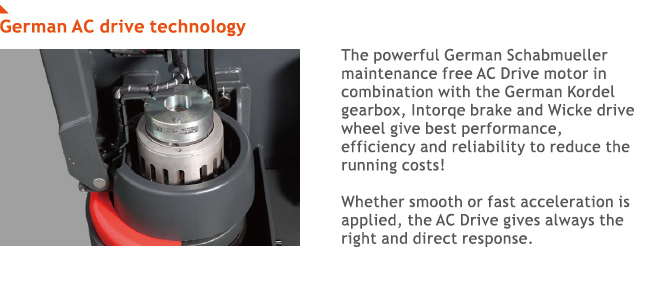

- German ACdrive motor and gearbox
- 24V/270Ahindustrial battery for PS35L SL,
- 24V/350Ahindustrial battery for PS44L SL
- Italian ZAPI Battery discharge indicator with hour meter
- Operatorprotection Plexiglass

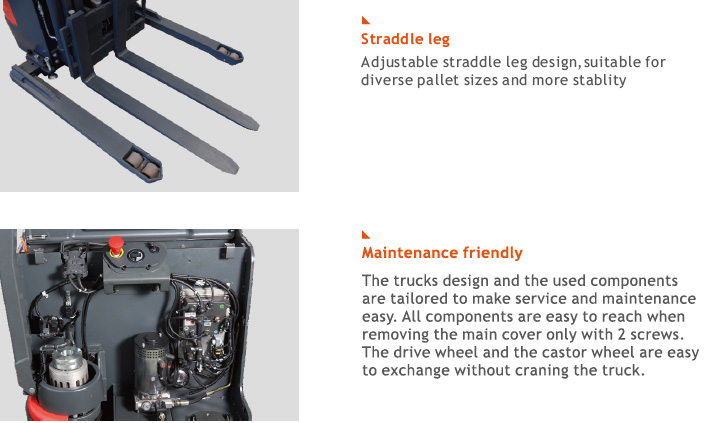

- Adjustablebase legs I.D. 33” to 45”, O.D. 48” to 60”
- Fork size: 45.3”Lx 10~28.7”W
- 9″ x 2.95″polyurethane drive tire
- 3.3″ x 3.3″polyurethane load wheels
- Emergencypower disconnect
- Ergonomiccontrol handle with horn button and belly button
- Dualbutterfly-style thumb controls
- Crawl speed button forsafe operation in tight spaceKey switchlimits access to approved personnel
- Travelspeed: 3.4mph (unloaded), 3.7mph (fully loaded)
- Proportionallift to have accurate control of the lift height
- Optional fork-overtype available
- Optionalfull free lift
- Available lift height 2 stage masts 114”/126”/141” for both PS35LSL and PS44LSL
- 3 stagemasts 169”/181”/208” for PS35LSL,
- 3 stagemasts 157”/169”/181” for PS44LSL,
Download Brochure: PS35L/44L SL
Parameters
| Type sheet for industrial truck acc. to VDI 2198 | |||||
|---|---|---|---|---|---|
| Distinguishing mark | 1.2 | Manufacturer`s type designation | PS 35L SL(4600) | PS 44L SL(4600) | |
| 1.3 | Power (battery ,diesel, petrol, gas, manual) | Battery | |||
| 1.4 | Operator type | Pedestrian | |||
| 1.5 | Load Capacity / rated load | Q(lbs) | 3520 | 4400 | |
| 1.6 | Load centre distance | C(in) | 23.6 | ||
| 1.8 | Load distance ,centre of drive axle to fork | x(in) | 27.2 | 26.5 | |
| 1.9 | Wheelbase | y(in) | 54.3 | 58.7 | |
| Weight | 2.1 | Service weight | lbs | 3219 | 3748 |
| 2.2 | Axle loading, laden front/rear | lbs | 2205/4542 | 2425/5732 | |
| 2.3 | Axle loading, unladen front/rear | lbs | 2249/970 | 2227/1521 | |
| Tires, chassis | 3.1 | Tires | Polyurethane (PU) | ||
| 3.2 | Tire size, front | ÆxW (in) | Ф9×2.95 | ||
| 3.3 | Tire size, rear | ÆxW (in) | Ф3.3×3 | ||
| 3.4 | Additional wheels(dimensions) | ÆxW (in) | Ф5.9×2 | ||
| 3.5 | Wheels, number front/rear(x=driven wheels) | 1x+1/4 | |||
| 3.6 | Track, front | b10(in) | 20.5 | ||
| 3.7 | Track, rear | b11(in) | 43.1-54.9 | ||
| Dimensions | 4.2 | Lowered mast height | h1(in) | 83 | 88 |
| 4.3 | Free Lift height | h2(in) | 60 | 60 | |
| 4.4 | Lift height | h3(in) | 178 | 178 | |
| 4.5 | Extended mast height | h4(in) | 200 | 205 | |
| 4.9 | Height of tiller in drive position min./ max. | h14(in) | 33.5/54.5 | ||
| 4.15 | Height, lowered | h13(in) | 1.97 | ||
| 4.19 | Overall length | l1(in) | 78.9 | 84.1 | |
| 4.20 | Length to face of forks | l2(in) | 33.6 | 38.8 | |
| 4.21 | Overall width | b1(in) | 32.3/(48-59.8) | ||
| 4.22 | Fork dimensions | s/e/l(in) | 1.6×4.7×45.3 | ||
| 4.25 | Distance between fork-arms | b5(in) | 10-28.7 | ||
| 4.32 | Ground clearance, centre of wheelbase | m2(in) | 1.3 | ||
| 4.33 | Aisle width for pallets 1000X1200 crossways | Ast(in) | 100.6 | 105.3 | |
| 4.34 | Aisle width for pallets 800X1200 lengthways | Ast(in) | 99.5 | 104.4 | |
| 4.35 | Turning radius | Wa(in) | 66.1 | 70.5 | |
| Performance data | 5.1 | Travel speed, laden/ unladen | mph | 3.5/3.7 | 3.4/3.7 |
| 5.2 | Lift speed, laden/ unladen | fpm | 25.6/39.4 | 25.6/39.4 | |
| 5.3 | Lowering speed, laden/ unladen | fpm | 39.4/27.6 | 39.4/27.6 | |
| 5.8 | Max. gradeability, laden/ unladen | % | 6/12 | 6/10 | |
| 5.10 | Service brake | Electromagnetic | |||
| Electric- engine | 6.1 | Drive motor rating S2 60min | HP | 1.7 | 2.3 |
| 6.2 | Lift motor rating at S3 10% | HP | 4.3 | 4.3 | |
| 6.3 | Battery acc. to DIN 43531/35/36 A, B, C, no | 3VBS | 3PZS | ||
| 6.4 | Battery voltage, nominal capacity K5 | V/Ah | 24/270 | 24/350 | |
| 6.5 | Battery weight | lbs | 506 | 634 | |
| 6.6 | Energy consumption acc: to VDI cycle | kWh/h | 1.59 | 1.79 | |
| Additional data | 8.1 | Type of drive control | AC- speed control | ||
| 8.4 | Sound level at driver`s ear acc. to EN 12053 | dB(A) | 69 | ||
